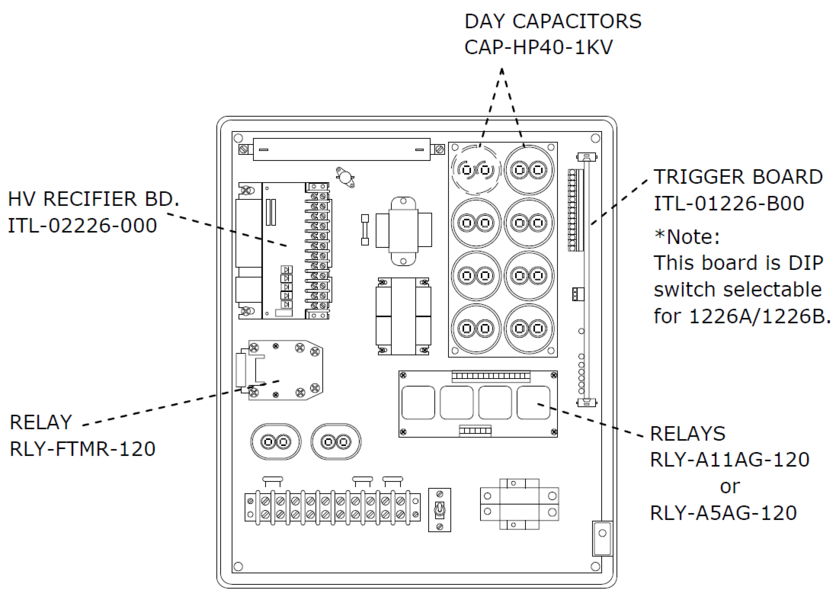

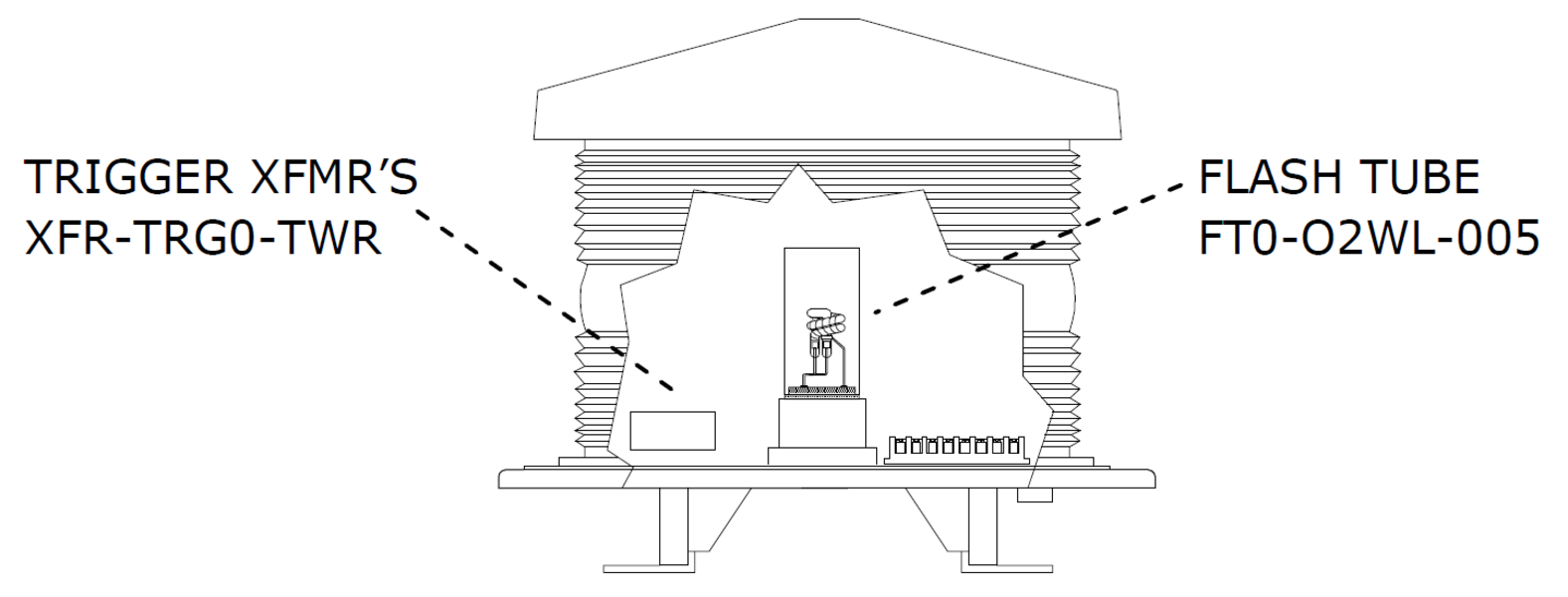

D-1LVS Parts Diagram
| D-1LVS Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| FT0-O2WL-005 | STFLSHTB5 | Flash Tube, White, FT |
| CAP-HP40-1KV | STB99006 | Capacitor, Day, 40uF, C103-C109 |
| ITL-01226-B00* | STH01226B | Trigger Board, PCB1 |
| ITL-02226-000 | STH02226A | HV Rectifier BD, PCB2 |
| RLY-A11AG-120 | X99KE | Relay, DPDT |
| RLY-A5AG-120 | X9KE | Relay, SPDT |
| RLY-FTMR-120 | STJ10006 | Relay, Bleeder, K2 |
| XFR-TRG0-TWR | STC05005 | Trigger Transformer, T4 (5,6) |
| PEC-NITE-120-ND | P2455L | Photocell, 120V |
*Note: The ITL-01226-B00 is DIP switch selectable for1226 A/B operation.
ITL, LLC offers in-house repair services for the D-1LVS power supplies and circuit boards.
| D-2/3LVS | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| FT0-O2WL-005 | STFLSHTB5 | Flash Tube, White |
| ITL-01258-B00* | STH01258B | Trigger Board, PCB1 |
| ITL-02258-000 | STH02258A | HV Rectifier Board, PCB2 |
*Note: The ITL-01258-B00 is DIP switch selectable for 1258A/B operation.
ITL, LLC offers in-house repair services for the D-2/3LVS power supplies and circuit boards.
| D-1LV, E-1LV | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| FT0-O2WL-004 | STFLSHTB4 | Flash Tube, White |
| ITL-01226-B00* | STH01226A | Trigger Board, PCB1 |
*Note: The ITL-01226-B00 is DIP switch selectable for 1226A/B operation
| D-1A, D-2A, E-1A & E-2/3A | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| FT0-O2WL-003 | STFLSHTB3 | Flash Tube, White |
| XFR-TRIG-TB3 | STC05001 | Trigger Transformer |
