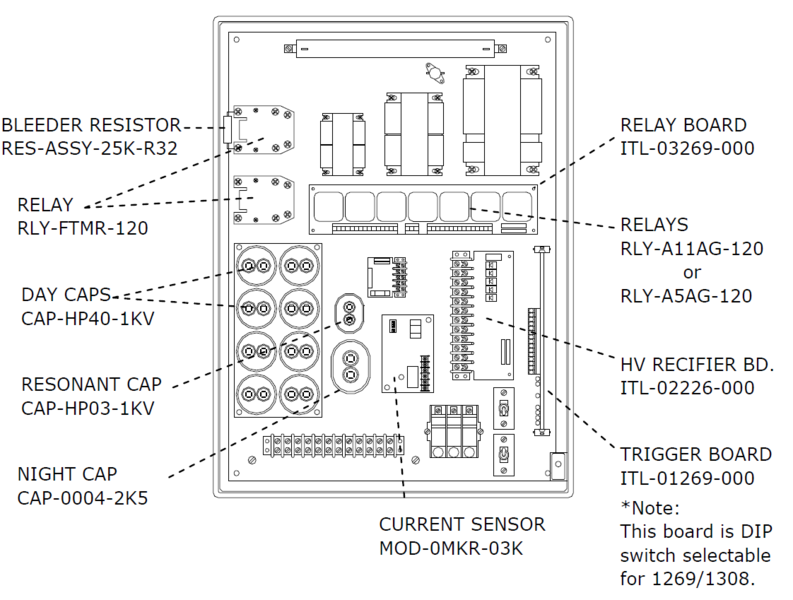

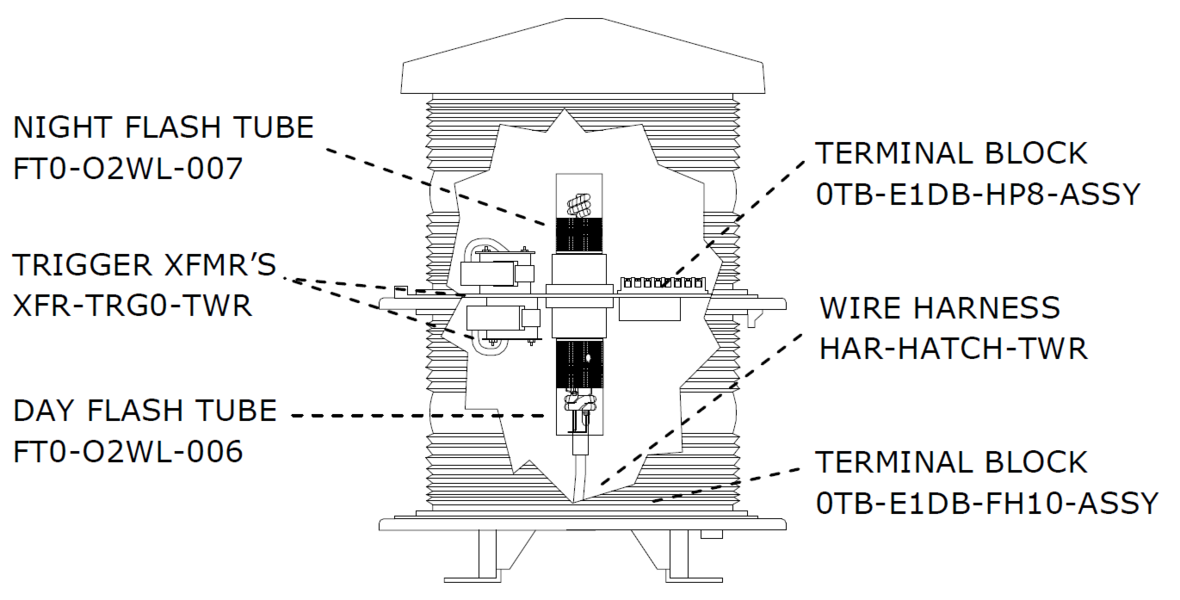

E-1DB Parts Diagram
| E-1DB Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-HP03-1KV | STB99008 CSI | Capacitor, Resonant, 3uF, C101 |
| CAP-0004-2K5 | STB99010 | Capacitor, Night, 4uF, C102 |
| CAP-HP40-1KV | STB99006 | Capacitor, Day, 40uF, C103-C110 |
| FT0-02WL-006 | STFLSHTB6 | Flash Tube, Day Mode, FT1 |
| FT0-O2WL-007 | STFLSHTB7 | Flash Tube, Night Mode, FT2 |
| FUS-A125-3AG | FUSE.125 | Fuse, 1/8 Amp, F41 on PCB4 |
| FUS-001A-KTK | KTK1 | Fuse, Isolation Transformer, F1 |
| FUS-005A-KTK | KTK5 | Fuse, Sidelight, S1 |
| FUS-010A-KTK | KTK10 | Fuse, Input Fuse, F2 |
| HAR-HATCH-TWR | STDBEAPIGTAIL | Wire Harness, Hatchplate |
| MOD-0MKR-03K | SRCR430T | Current Sensor, M1 |
| ITL-01269-000* | STH01269 | Trigger Board, PCB1 |
| ITL-01269-000* | STH01308 | Trigger Bd. For LED Conversion |
| ITL-02226-000 | STH02226 | HV Rectifier Board, PCB2 |
| ITL-03269-000 | STH03269 | Relay Board, PCB3 |
| RES-ASSY-25K-R32 | STA08020 | Bleeder Resistor, R32 |
| RLY-A11AG-120 | X99KE | Relay, DPDT, K1, K4, K6, K8 |
| RLY-A5AG-120 | X9KE | Relay, SPDT, K7 |
| RLY-FTMR-120 | STJ10006 | Relay, Bleeder, K2, K3 |
| RLY-KRPA-SOCK | PB27E12 | Relay Socket, Octal |
| SW1-ASSY-INT | STJ02003 | Safety Switch, Beacon, BSS1 |
| SW0-ASSY-INT | STJ02001 | Safety Switch, Cabinet, CCS1 |
| OTB-E1DB-FH10-ASSY | DBTERMBLK10KIT | Terminal Block, 10-Position, Kit |
| OTB-E1DB-HP8-ASSY | DBTERMBLK8KIT | Terminal Block, 8-Position, Kit |
| XFR-TRG0-TWR | STC05005 | Trigger Transformer, T4, T5 |
| PEC-NITE-120 | P2455L | Photocell, 120V |
*Note: The ITL-01269-000 is DIP switch selectable for 1269/1308 operation.
ITL, LLC offers in-house repair services for the E-1DB power supplies and circuit boards.
| E-2/3DB Aftermarket Parts | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| ITL-01279-000 | STH01279 | Trigger Board, E-2/3DB, PCB1 |
| ITL-02258-000 | STH02258A | HV Rectifier Board, PCB2 |
ITL, LLC offers in-house repair services for the E-2/3DB power supplies and circuit boards.
