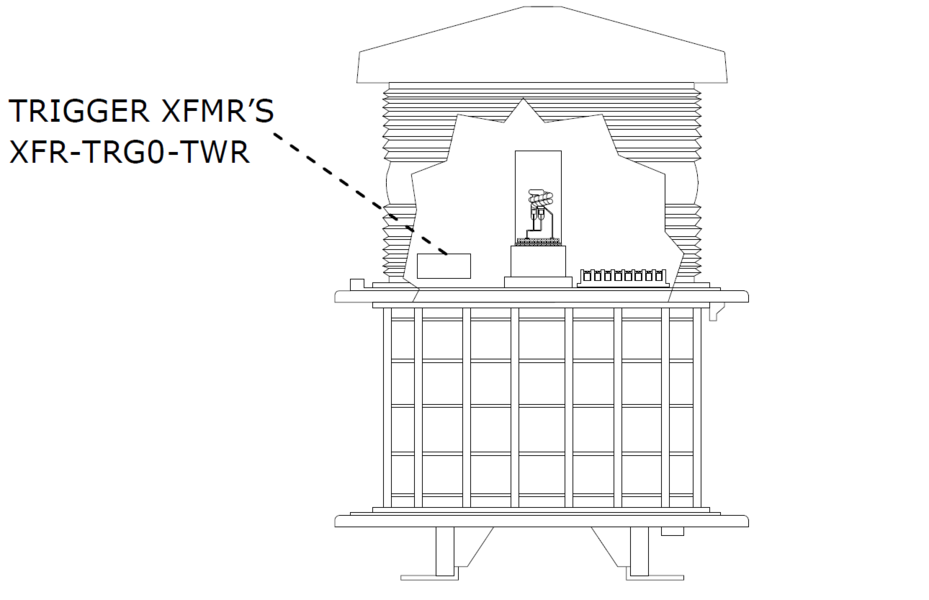

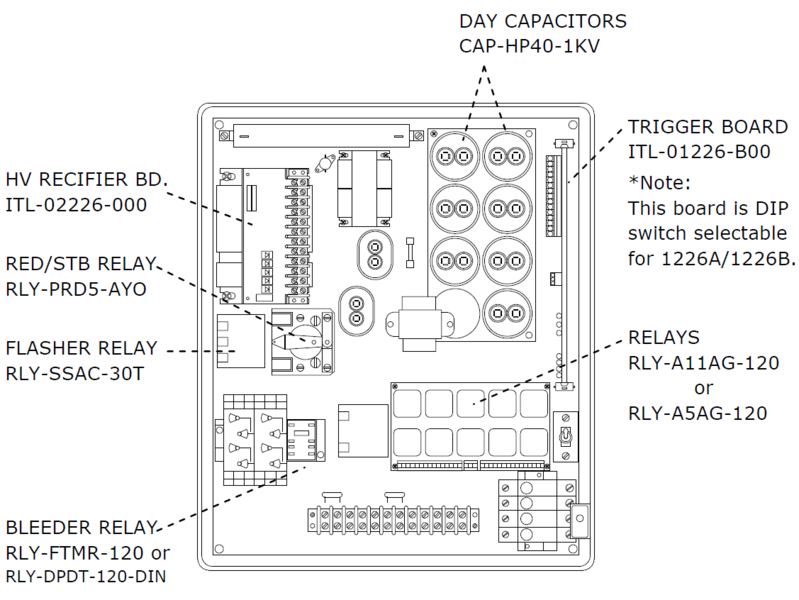

E-1DBSL Parts Diagram
| E-1DBSL Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-HP03-1KV | STB99008 CSI | Capacitor, Resonant, 3uF, C101 |
| CAP-HP40-1KV | STB99006 | Capacitor, Day, 40uF, C103-C110 |
| FUS-001A-KTK | KTK1 | Fuse, 1A, F4 (F3,F7) |
| FUS-002A-KTK | KTK2 | Fuse, 2A, F5 |
| ITL-01226-B00* | STH01226B | Trigger Board, PCB1 |
| ITL-02226-000 | STH02226A | HV Rectifier BD, PCB2 |
| MOD-0MKR-03K | SRCR430T | Current Sensor, M2 |
| RLY-A11AG-120 | X99KE | Relay, DPDT |
| RLY-A5AG-120 | X9KE | Relay, SPDT |
| RLY-FTMR-120 | STJ10006 | Relay, Bleeder, K2 |
| RLY-DPT-120-DIN | Relay Bleeder, DIN Mnt, K2A | |
| RLY-PRD5-AYO | PRD5AYO | Relay, Red/Strobe, K3 |
| RLY-SSAC-30T | FS15530T | Relay, SS Flasher, M3 |
| SW1-ASSY-INT | STJ02003 | Safety Switch, Beacon, BSS1 (2,3) |
| SW0-ASSY-INT | STJ02001 | Safety Switch, Cabinet, CCS |
| OTB-WEIL-015 | STT600231 | 15-Position Plug, P1, J1 |
| XFR-TRG0-TWR | STC05005 | Trigger Transformer, T4 (5,6) |
| PEC-NITE-120-ND | P2455L | Photocell, 120V |
*Note: The ITL-01226-B00 is DIP switch selectable for A/B operation.
ITL, LLC offers in-house repair services for the E-1DBSL power supplies and circuit boards.
| E-2/3DBSL Aftermarket Parts | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| ITL-01258-B00* | STH01258B | Trigger Board, PCB1 |
| ITL-02258-000 | STH02258A | HV Rectifier Board, PCB2 |
*Note: The ITL-1258-B00 is DIP switch selectable for A/B operation.
ITL, LLC offers in-house repair services for the E-2/3DBSL power supplies and circuit boards.
