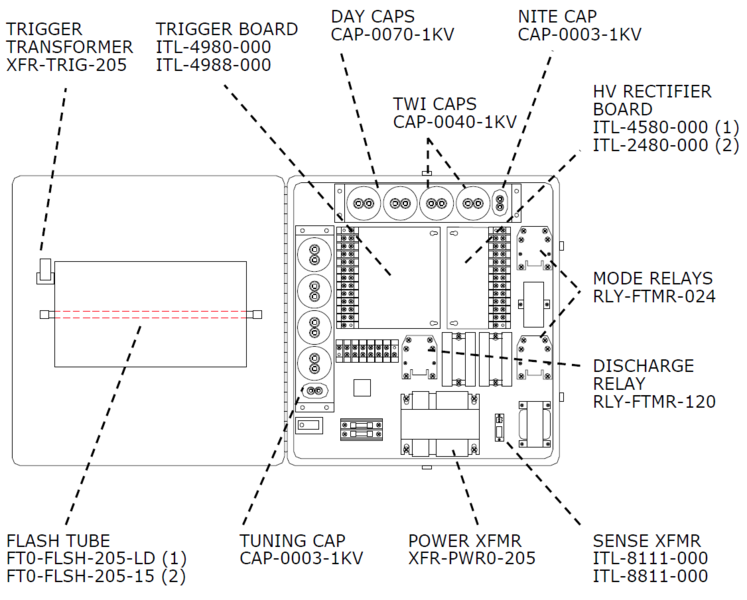

FTB-205 Parts Diagram
| FTB-205 Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-0003-1KV | 6577903 | Capacitor, Tuning, 3uF, C4 |
| CAP-0001-1KV | 6848202 | Capacitor, Night, 1uF, C3 |
| CAP-0040-1KV | 6386503 | Capacitor, Twilight, 40uF, C2A |
| CAP-0070-1KV | 6720401 | Capacitor, Day, 70uF, C1A-C1G |
| DIO-BRGE-312 | 6902806 | Diode Bridge, BR1 |
| FT0-FLSH-205-LD | 8671301 | Flash Tube, 9 inch, FT1 |
| FT0-FLSH-205-15 | 8466301 | Flash Tube, 15 inch, FT1 |
| ITL-2480-000 | 22480XX | HV Rectifier Board, 1.5KV, PCB2 |
| ITL-4580-000 | 2458005 | HV Rectifier Board, 1KV, PCB2 |
| ITL-4980-000 | 24980XX | Timing & Trigger Board, PCB 1 |
| ITL-4988-000 | 24988XX | Timing & Trigger Board, PCB 1 |
| ITL-8111-000 | 2811101 | Sense Board, PCB3 |
| ITL-8811-000 | 2881101 | Sense Board, PCB3 |
| RES-01K5-050 | 6900535 | Resistor, Burst, 1.5K, 50W, R2A,B |
| RES-035K-050 | 6900541 | Resistor, Bleeder, 35K, 50W R1A,B |
| RLY-FTMR-120 | 8328802 | Relay, Bleeder, 120V, K3 |
| RLY-FTMR-024 | 8328801 | Relay, Mode, 24V, K1, K2 |
| SUP-120V-000 | 8250801 | Suppressor, 120V, VR1 |
| SW0-ASSY-205 | d>8205501 | Interlock Switch Assembly, S1/S2 |
| XFR-PWR0-205 | 884150X | Transformer, 1000V, Multi-tap, T1 |
| XFR-FLSH-CPL | 8336702 | Coupling Transformer, T102 |
| XFR-TRIG-205 | 8288201 | Trigger Transformer, T101 |

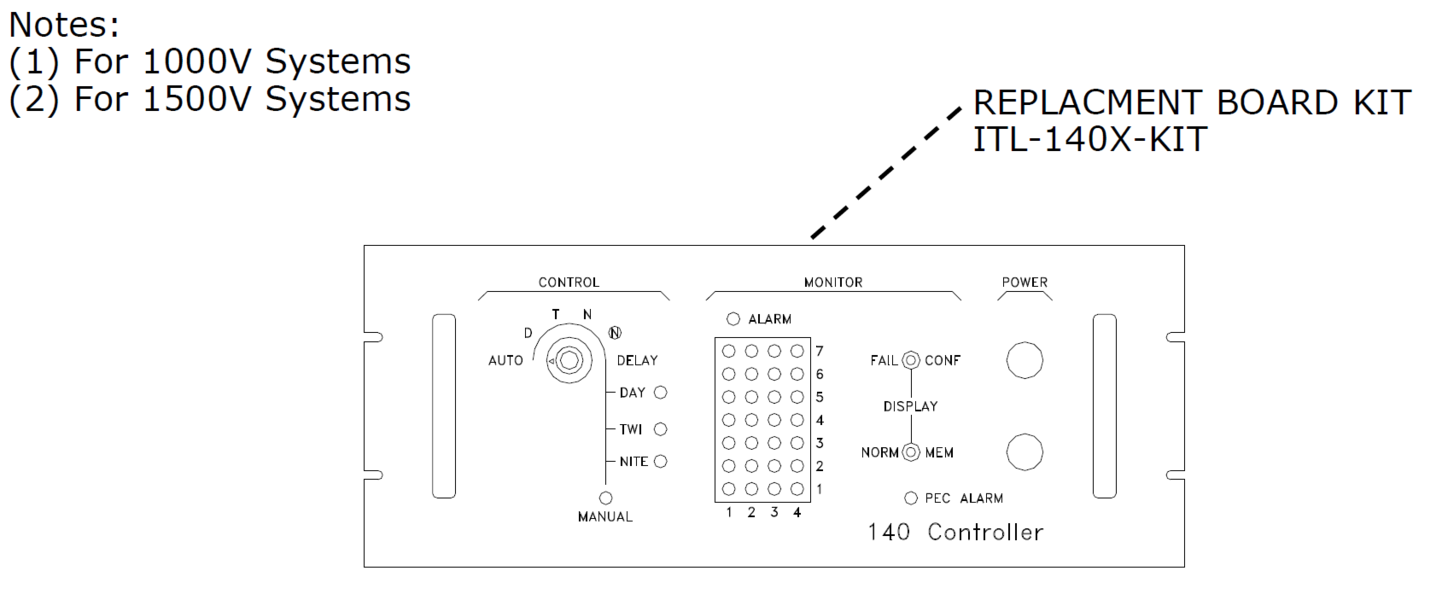

| ITL-140X-KIT | 140 Controller Bd Kit, PCB100,200 | |
ITL, LLC offers in-house repair services for the FTB-205 and FTB-225 power converters and all circuit boards including the 4990 and 9044.
