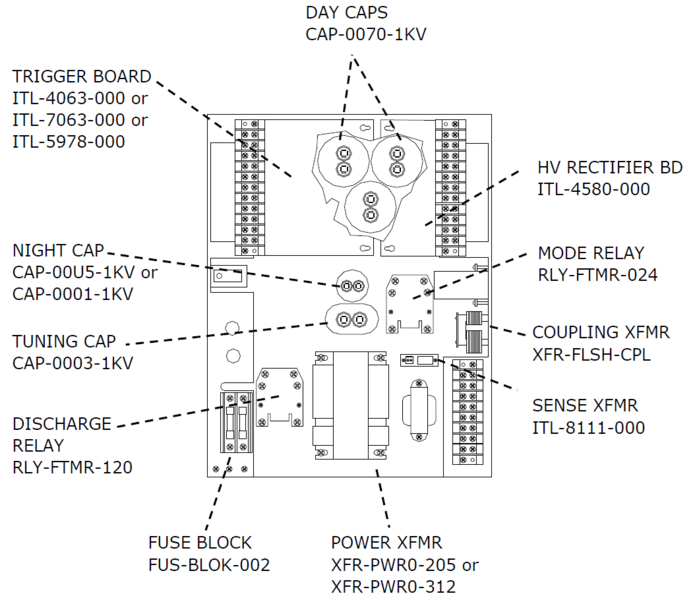

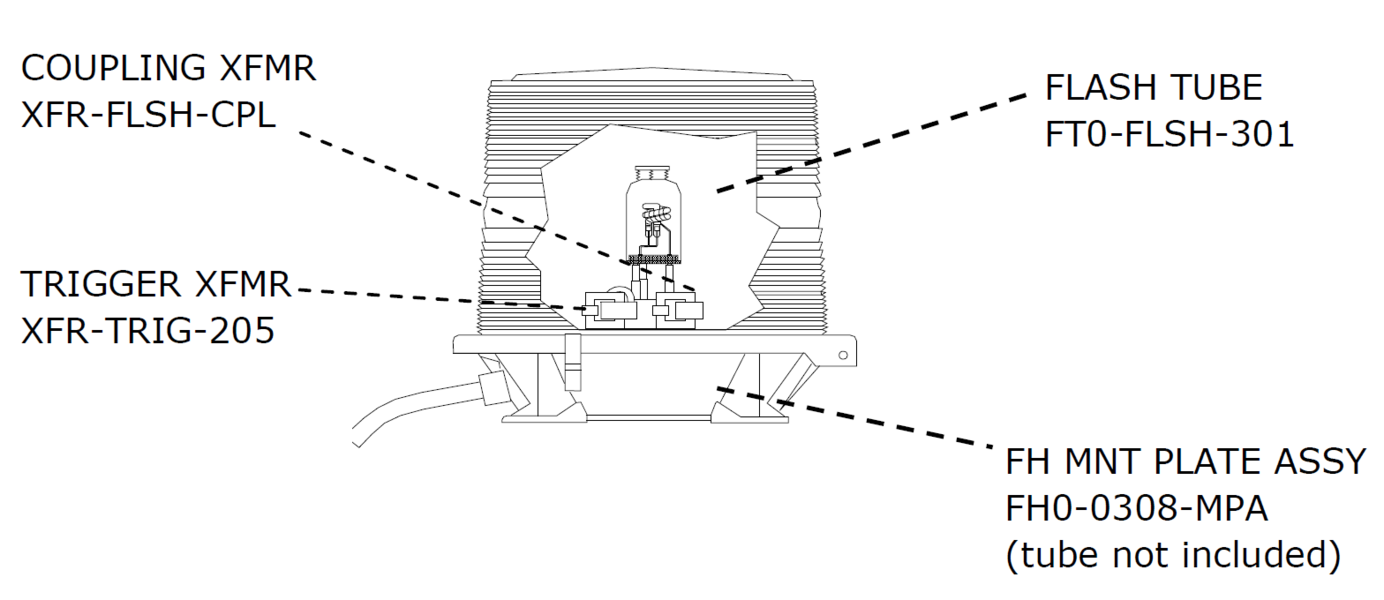

FTB-301 Parts Diagram
| FTB-301 Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-00U5-1KV | 6848201 | Burst Capacitor, 0.5uF, C3 |
| CAP-0001-1KV | 6848202 | Burst Capacitor, 1uF, C3 |
| CAP-0003-1KV | 6577903 | Tuning Capacitor, 3uF, C4 |
| CAP-0070-1KV | 6720401 | Day Capacitor, 70uF, C1 |
| DIO-BRGE-312 | 6902806 | Diode Bridge, BR1 |
| FT0-FLSH-301 | 8384328 | Flash Tube, FT101 |
| FUS-008A-FNM | 4900307 | Power Fuse, F1 |
| ITL-4580-000 | 8458001 | High Voltage Rectifier Board, PCB2 |
| ITL-4063-000 | 24063xx | Trigger Board, PCB1 |
| ITL-7063-000 | Trigger Board (120V PEC), PCB1 | |
| ITL-5978-000 | Trigger Board (Resistive PEC), PCB1 | |
| ITL-8111-000 | 2811101 | Sense Module, PCB4 |
| RES-035K-050 | 6900541 | Bleed Resistor, R1 |
| RES-0500-050 | 6900532 | Burst Resistor, R2 |
| RLY-FTMR-120 | 8328802 | Discharge Relay, 120V, K3 |
| RLY-FTMR-024 | 8328801 | Mode Relay, 24V, K2 |
| SW0-ASSY-INT | 4901220 | Interlock Switch, SW1 |
| SUP-120V-000 | 6901079 | Suppressor, 120V, VR1 |
| XFR-FLSH-CPL | 8336702 | Coupling Transformer, T102 |
| XFR-PWR0-205 | 8841201 | Power Transformer (-43E), T1 |
| XFR-TRIG-205 | 8288201 | Trigger Transformer, T101 |
| RNC-0001-ASY | 8403407 | Resistor Network, FH306/308, RC102 |
| RNC-1KPF-ASY | 8403403 | Resistor Network, FH306/308, RC101 |
| PEC-0510-0HD | 1855001 | Photocell, Resistive |
ITL, LLC offers in-house repair services for the FTB-301 power converter and all circuit boards.
