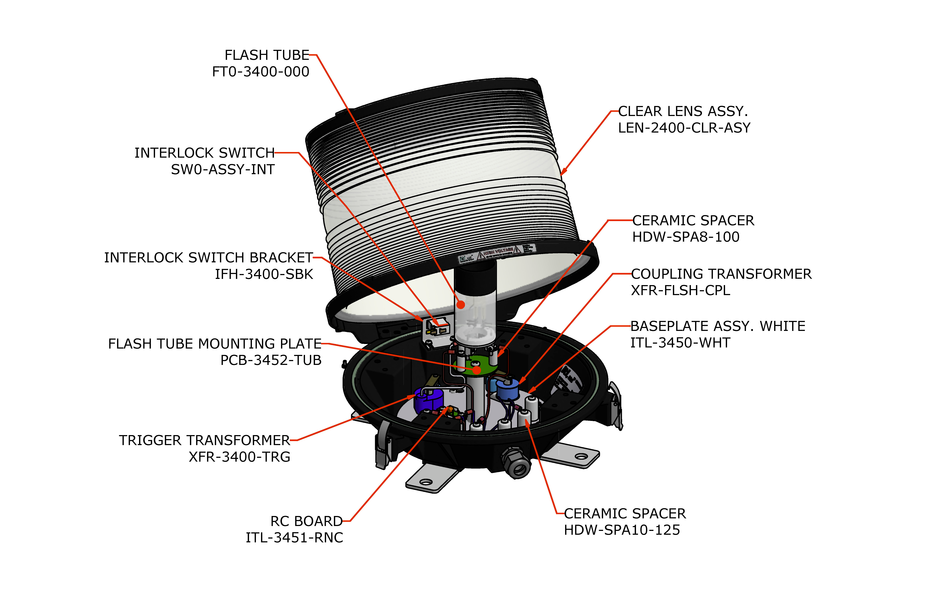

ILS-2400 Parts Diagram
| ILS-2400 Parts List | |
|---|---|
| ITL P/N | Description |
| CAP-0003-1KV | Tuning Capacitor, 3 uF, 1KV |
| CAP-0003-1K4 | Night Capacitor, 3 uF, 1.4KV |
| CAP-0070-1KV | Day Capacitor, 70uF, 1KV |
| FT0-3400-000 | Flash Tube |
| FT0-CLIP-3400 | Flash Tube Mounting Clip |
| FUS-001A-3AG | Fuse 1A, 3A, SLO-BLO |
| FUS-005A-3AG | Fuse 5A, 3A, SLO-BLO |
| FUS-008A-3AG | Fuse 8A, 3A, SLO-BLO |
| HDW-SPA10-125 | Spacer #10-32 x 1.25 |
| HDW-SPA8-100 | Spacer #8-32 x 1 |
| IND-3400-FCH | Flash Choke, IPS-3400 |
| IND-BCHK-312 | Night Choke, ILS-3400/2400 |
| ITL-3400-TRG | Trigger Board |
| ITL-3401-RLY | Alarm Board |
| ITL-3410-0HV | High Voltage Board |
| ITL-3421-SEN | Sense Board |
| ITL-3430-PCS | Modem Board |
| ITL-3450-WHT | Base plate Assembly White for IFH-2400/IFH-3400 |
| ITL-3451-RNC | RC BOARD |
| LEN-2400-CLR-ASY | Clear Lens Assembly |
| LMP-NEON-02K | Neon Lamp, Red, 120V |
| MOV-FLSH-130 | MOV, 130V, 70J |
| RES-0100-050 | Night Resistor , 100 Ohm |
| RES-ASSY-34K-BLE | Resistor 25K, 20W, with Ring Lug |
| RES-ASSY-34K-HV | Resistor Assembly for IPS-3400, HV with Ring Lug |
| RLY-CUBE-RED | Relay Cube |
| RLY-FTMR-024 | Power Relay, 24V |
| RLY-FTMR-120 | Power Relay, 120V |
| SUP-130V-34K | Suppressor Assembly |
| SW0-ASSY-INT | Interlock Switch |
| XFR-3400-ASY | Transformer for IPS-3400 Power Converter |
| XFR-FLSH-CPL | Coupling Transformer |
| XFR-3400-CPL | Coupling Transformer |
| XFR-3400-TRG | Trigger Transformer |
