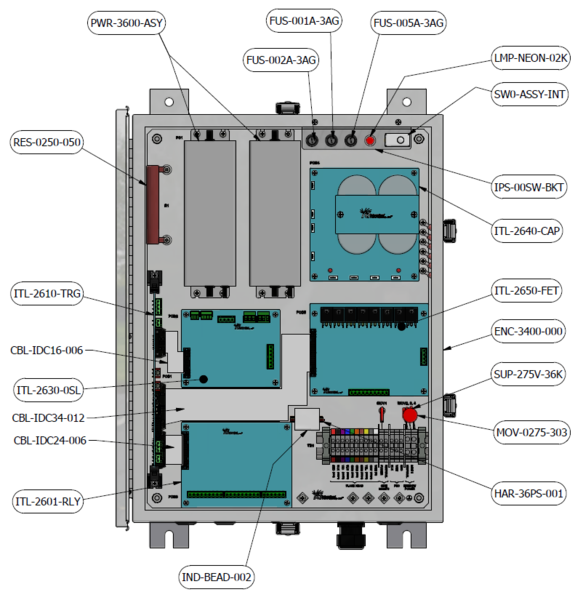

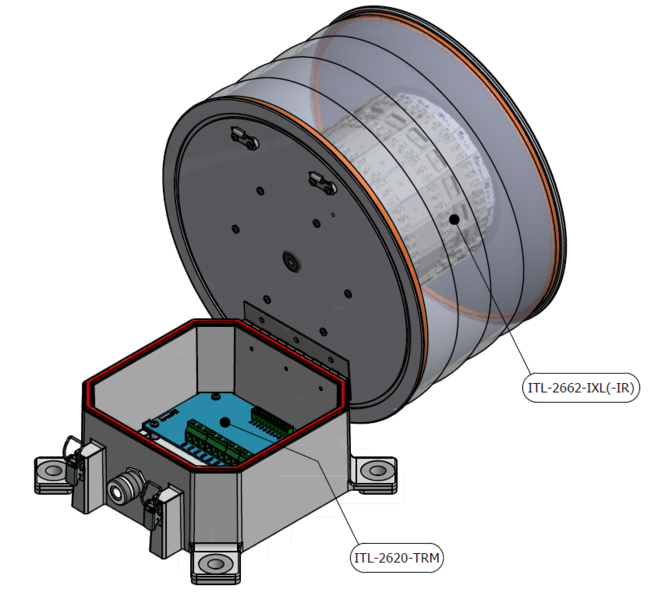

ILS-3600 Parts Diagram
| ILS-3600 Parts List | |
|---|---|
| ITL P/N | Description |
| ITL-2640-CAP | CAPACITOR BOARD |
| ITL-2650-FET | FET BOARD |
| PWR-3600-ASY | POWER SUPPLY, INCL. TERMINAL PLUGS |
| SW0-ASSY-INT | INTERLOCK SWITCH |
| LMP-NEON-02K | NEON LAMP, RED, 120V |
| FUS-001A-3AG | FUSE 1A, 3AG, SLO-BLO |
| FUS-002A-3AG | FUSE 2A, 3AG, SLO-BLO |
| FUS-005A-3AG | FUSE 5A, 3AG, SLO-BLO |
| IPS-00SW-BKT | SWITCH, FUSE AND PILOT LIGHT BRACKET |
| RES-0250-050 | RESISTOR |
| IND-BEAD-002 | FERRITE BEAD |
| SUP-275V-36K | MOV SURGE SUPPRESSOR WITH RING LUG |
| MOV-0275-303 | MOV SURGE SUPPRESSOR |
| IFH-3600-0IR | DUAL LED FLASH HEAD |
| ITL-2620-TRM | TERMINAL BOARD |
| ITL-2662-IXL-IR | LED BOARD WITH INFRARED EMITTERS |
