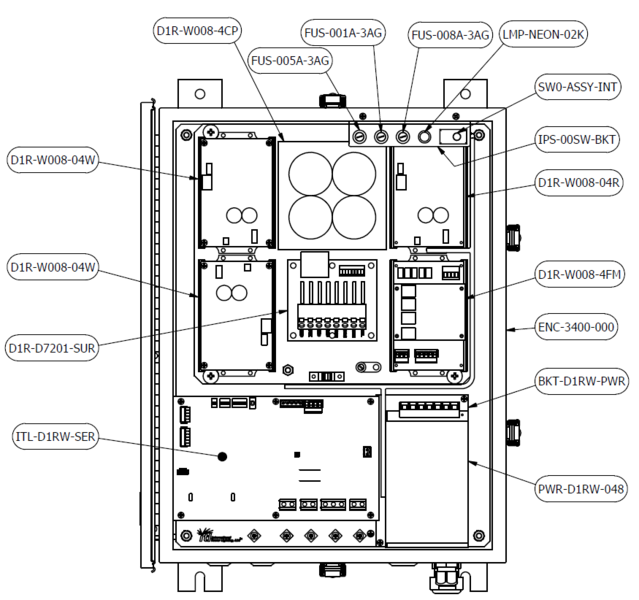

ILS-D1RW Parts Diagram
| ILS-D1RW Parts List | |
|---|---|
| ITL P/N | Description |
| ENC-3400-000 | NEMA 4X ENCLOSURE |
| D1R-W008-04W | WHITE DRIVER MODULE |
| D1R-W008-04R | RED DRIVER MODULE |
| D1R-W008-4FM | MICROCONTROLLER/FILTER MODULE |
| D1R-W008-4CP | CAPACITOR MODULE |
| D1R-D7201-SUR | SURGE PROTECTION BOARD |
| ITL-D1RW-SER | CONTROL BOARD |
| PWR-D1RW-048 | POWER SUPPLY |
| SW0-ASSY-INT | INTERLOCK SWITCH |
| LMP-NEON-02K | NEON LAMP, RED, 120V |
| FUS-001A-3AG | FUSE 1A, 3AG, SLO-BLO |
| FUS-005A-3AG | FUSE 5A, 3AG, SLO-BLO |
| FUS-008A-3AG | FUSE 8A, 3AG, SLO-BLO |
| IPS-00SW-BKT | SWITCH, FUSE AND PILOT LIGHT BRACKET |
| BKT-D1RW-PWR | MOUNTING PLATE FOR POWER SUPPLY |
| IFH-D1RW-8SP | DUAL LED FLASH HEAD |
