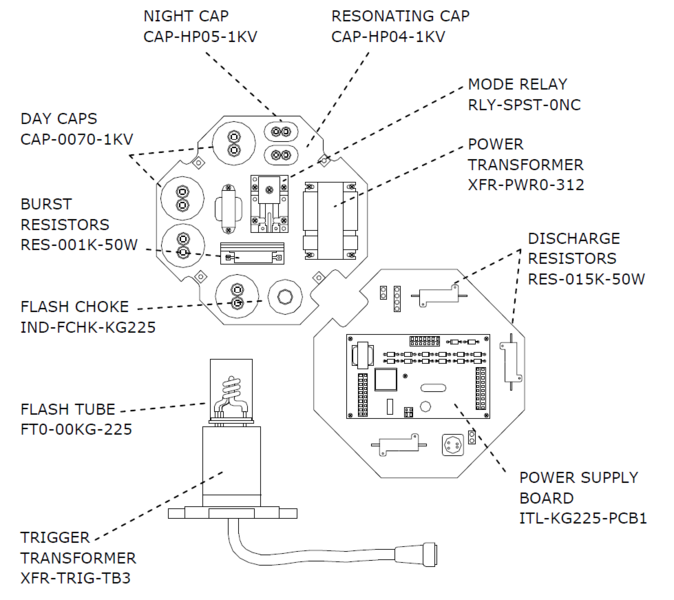

KG-225 Parts Diagram
| KG-225 Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-HP04-1KV | 77-3911 | Resonating Capacitor, 4uF, C1 |
| CAP-HP05-1KV | CA505B661CDG | Night Capacitor, 5uF, C2 |
| CAP-0070-1KV | CA706A441EK | Day Capacitor, 70uF, C2-5 |
| FT0-00KG-225 | C6A1004AA2 | Flash Tube, FT1 |
| FAN-00KG-225 | A6A1010AF2 | Fan |
| IND-FCHK-KG225 | Flash Choke | |
| ITL-KG225-PCB1 | B6A1801PCB1A | Power Supply Board, PCB1 |
| RES-015K-50W | RW50RB1502GF | Discharge Resistors, R15, R20 |
| RES-001K-50W | RW50RD1502GF | Burst Resistors, R16, R17 |
| RES-0050-50W | RW50RB2502GF | Heater Resistors, R23, R24, R25 |
| RLY-SPST-0NC | KA121AV152HE | Mode Relay, K1 |
| RLY-TPTD-120 | KA121AV1032C | Bleeder Relay, K3 |
| XFR-PWR0-312 | TP24D1121506 | Power Transformer, T1 |
| XFR-TRIG-TB3 | Trigger Transformer | |
ITL, LLC offers in-house repair services for the KG-225 power supply and all circuit boards.
