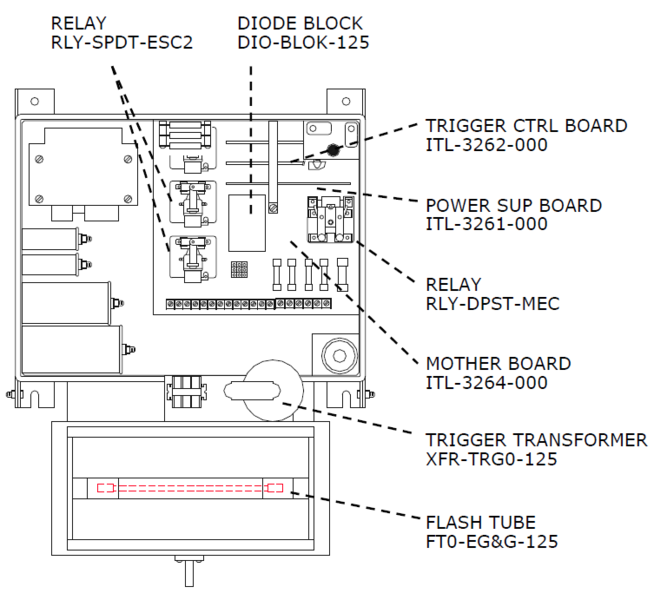

SS-125 Parts Diagram
| SS-125 Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| DIO-BLOK-ASY | 277-3342 | Diode Block, DB1 |
| FT0-EG&G-125 | 77-3295 | Flash Tube, V1 |
| ITL-3261-000 | 277-3261 | Power Supply Board, A1 |
| ITL-3262-000 | 277-3262 | Trigger Control Board, A2 |
| ITL-3264-000 | 277-3264 | Mother Board |
| RLY-SPDT-ESC2 | 77-2013 | Relay, SPDT, 120V, K2, K3, K4 |
| RLY-DPST-MEC | 77-2878 | Relay, DPST, 120V, K1 |
| SW0-ASSY-INT | 77-2644 | Switch, Interlock, S1 |
| SW2-ASSY-INT | 77-2668 | Remote/Local Switch, S2 |
| XFR-TRG0-125 | 77-3324 | Trigger Transformer |
| Other Systems Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| FT0-EG&G-129 | Flash Tube, White | |
