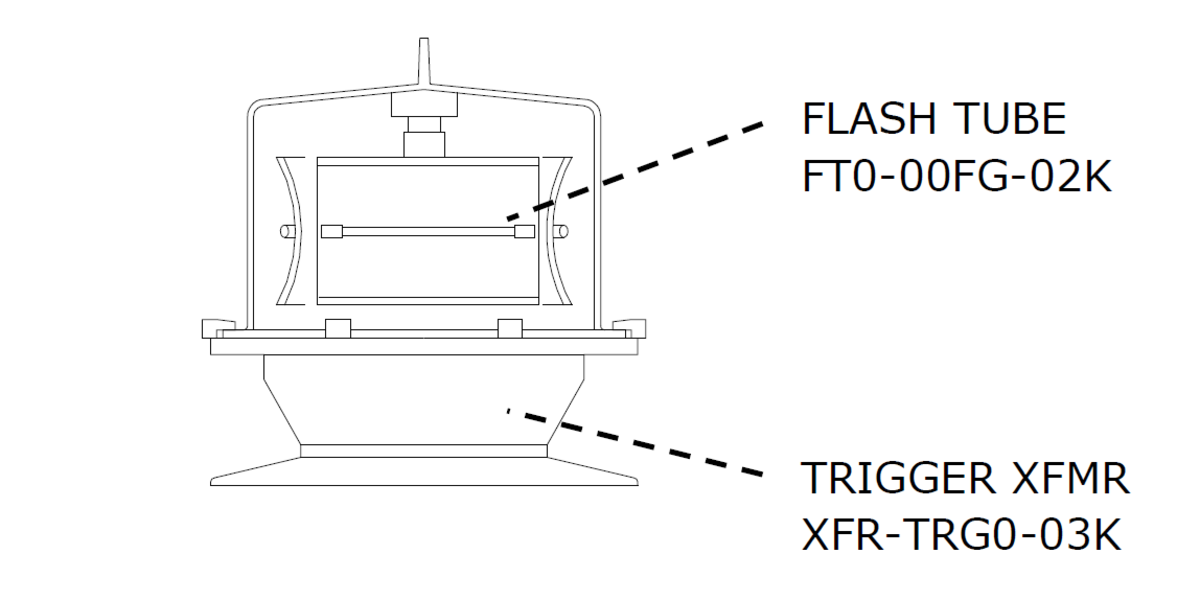

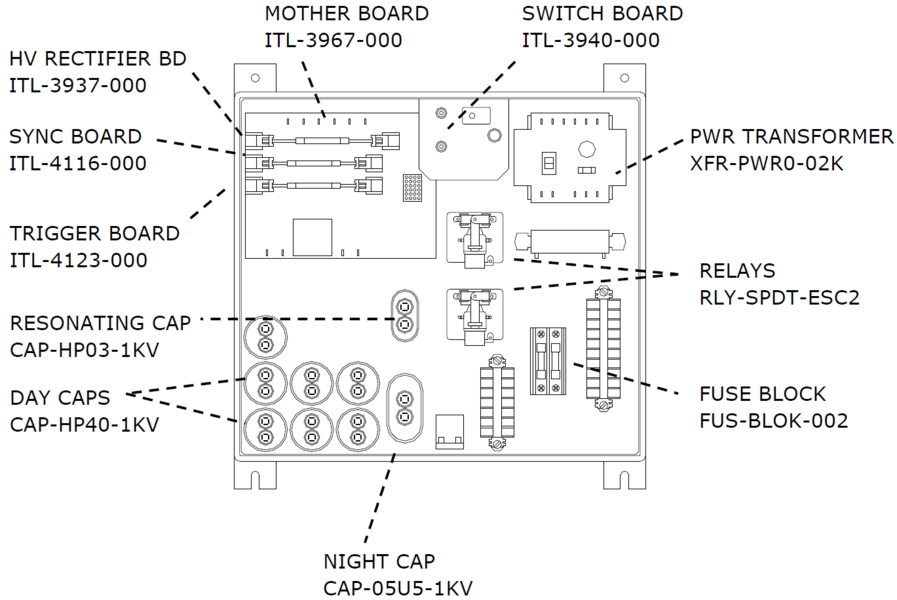

FG-2000 Parts Diagram

FG-2000 Aftermarket Parts List
ITL P/N OEM P/N Description
CAP-HP03-1KV 77-3311 Resonating Capacitor, 3uF, C1
CAP-05U5-1KV 77-4140 Night Capacitor, 7uF, C3
CAP-HP40-1KV 77-3949 Day Capacitor, 40uF, C2A-G
FT0-00FG-02K 12S00602 Flash Tube, FT1
FUS-004A-FNM DP-1020 Power Fuse, F1
FUS-A630-000 DP-1019 Fuse, 630mA, TB-F1
ITL-3937-000 277-3937 High Voltage Board
ITL-3939-000 277-3939 Diode Board
ITL-3940-000 77-3940 Switch Board (board only)
ITL-4116-000 277-4116 Sync Monitor Board
ITL-3967-000 277-3967 Mother Board
ITL-4123-000 277-4123 Trigger Board
LMP-NEON-02K   Control Power On Neon
MOD-0STB-03K   Strobe Alarm Module
RES-0020-40W 77-2759 Resistor, 20ohm, 40W, R2, R3, R4
RES-010K-55W 77-3959 Resistor, 10K, 55W, R1
RLY-SPDT-ESC2 77-2013 Relay, Trigger Steering, K1, K2
SW0-ASSY-INT 77-2644 Interlock Switch
XFR-TRG0-03K 77-4040W Trigger Transformer, White, T1
XFR-PWR0-02K 77-3970 Power Transforner, T1
PEC-NITE-120 77-3259 Photocell, 120V, Night
CBL-3400-000 77-4017 Flash Head Cable
SUP-LSSD-000 LSPD-3000B Lighting Surge Supression Device



ITL, LLC offers in-house repair services for the FG-2000 power supply and all circuit boards.
