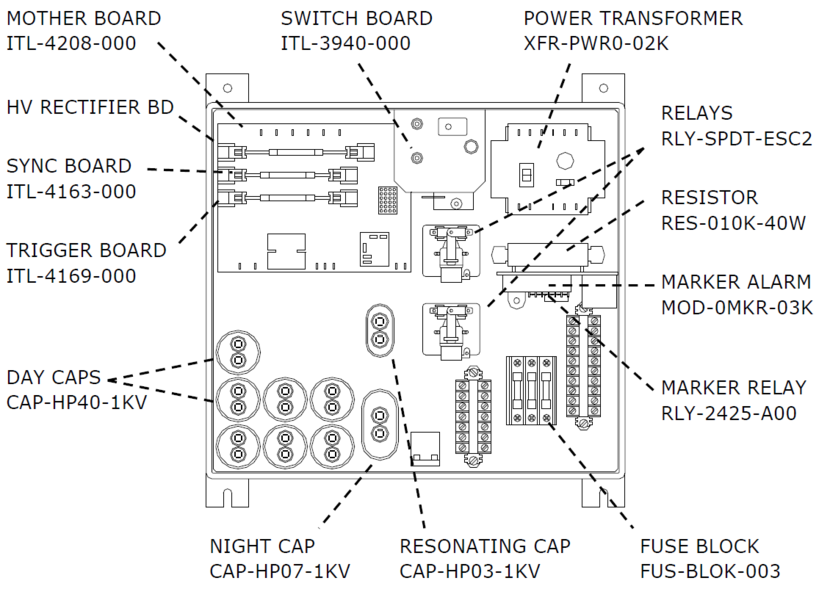

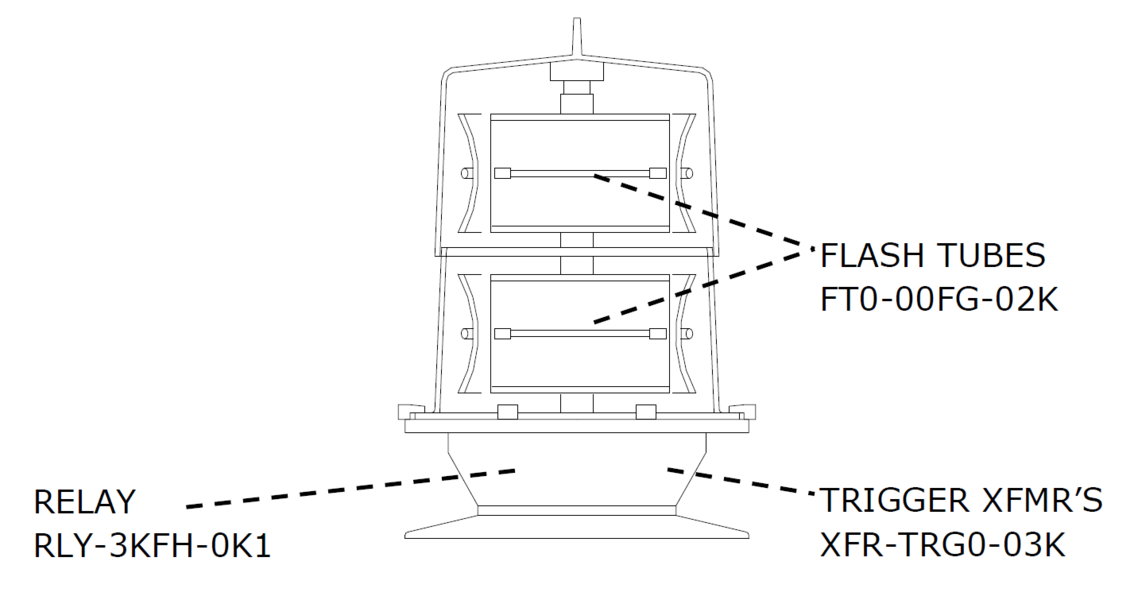

FG-3000 Parts Diagram
| FG-3000 Aftermarket Parts List | ||
|---|---|---|
| ITL P/N | OEM P/N | Description |
| CAP-HP03-1KV | 77-3311 | ResonatingCapacitor, 3uF, C3 |
| CAP-HP07-1KV | 77-3982 | Night Capacitor, 7uF, C3 |
| CAP-HP40-1KV | 77-3949 | DayCapacitor, 40uF, C2A-G |
| FT0-00FG-02K | 12S00602 | Flash Tube, FT1, FT2 |
| FUS-006A-FNM | 77-1167 | PowerFuse, F1 |
| FUS-A630-000 | DP-1019 | Fuse, 630mA, TB-F1 |
| ITL-3937-000 | 277-3937 | HighVoltage Board |
| ITL-3939-000 | 277-3939 | Diode Board |
| ITL-3940-000 | 77-3940 | Switch Board (board only) |
| ITL-4163-000 | 277-4163 | SyncMonitor Board |
| ITL-4169-000 | 277-4169 | Trigger Board, (3000) |
| ITL-4208-000 | 277-4208 | MotherBoard |
| LMP-NEON-02K | Control Power On Neon | |
| MOD-0MKR-03K | 77-4196 | Relay,Alarm, K4 |
| MOD-0STB-03K | Strobe Alarm Module | |
| RES-0020-40W | 77-2759 | Resistor, 20ohm, 40W, R2, R3,R4 |
| RES-010K-55W | 77-3959 | Resistor,10K, 55W, R1 |
| RLY-3KFH-0K1 | 77-4192 | Relay, Trigger Steering, K1 |
| RLY-2425-A00 | 77-4198 | Relay,Solid State, K5 |
| RLY-SPDT-ESC2 | 77-2013 | Relay, Trigger Steering, K1, K2 |
| SUP-130V-000 | Varistor,Flash Head, MOV | |
| SW0-ASSY-INT | 77-2644 | Interlock Switch |
| XFR-TRG0-03K | 77-4040W | TriggerTransformer, White, T1 |
| XFR-TRG0-03K | 77-4040R | Trigger Transformer, Red, T2 |
| XFR-PWR0-02K | 77-3970 | Power Transformer, T1 |
| PEC-NITE-120-ND | 77-3259 | Photocell, 120V, Night |
| CBL-3400-000 | 77-4017 | Flash Head Cable |
| SUP-LSSD-000 | LSPD-3000B | Lighting Surge Supression Device |
ITL, LLC offers in-house repair services for the FG-3000 power supply and all circuit boards.
