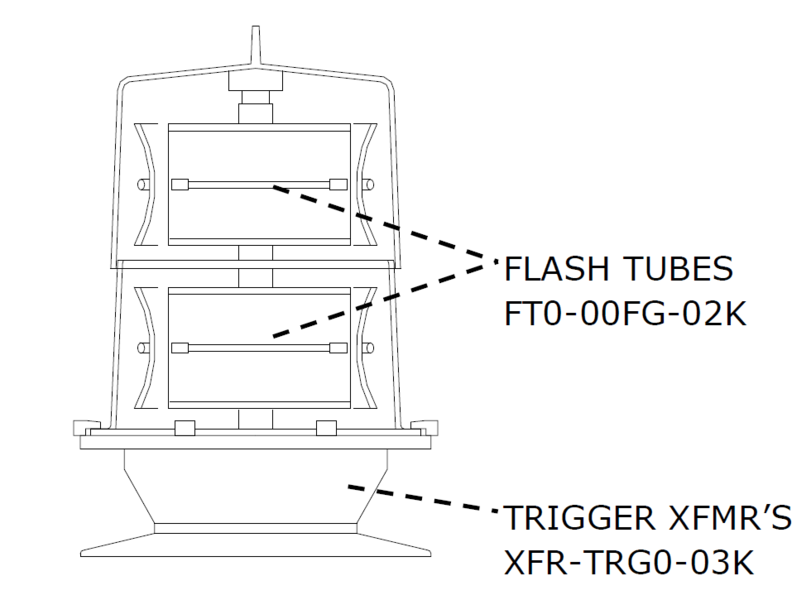

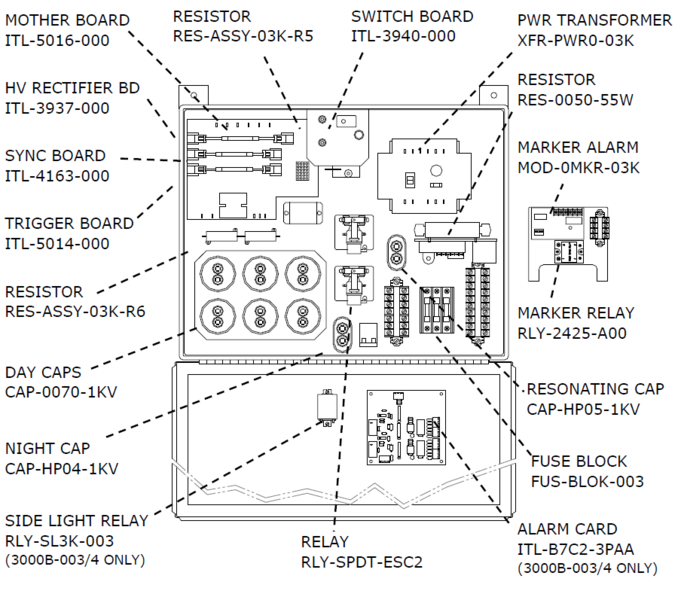

FG-3000B Parts Diagram

FG-3000B Aftermarket Parts List
ITL P/N OEM P/N Description
CAP-HP05-1KV CA505B661CDG Resonating Capacitor, 5uF, C3
CAP-HP04-1KV 77-3911 Night Capacitor, 4uF, C1
CAP-0070-1KV CA706A441EK Day Capacitor, 70uF, C2A-F
FT0-00FG-02K 12S00602 Flash Tube, FT1, FT2
FUS-006A-FNM 77-1167 Power Fuse, F1
FUS-A630-000 DP-1019 Fuse, 630mA, TB-F1
ITL-3937-000 277-3937 High Voltage Board
ITL-3939-000 277-3939 Diode Board
ITL-3940-000 77-3940 Switch Board (board only)
ITL-4163-000 277-4163 Sync Monitor Board
ITL-5014-000 277-5014 Trigger Board, (3000B)
ITL-5016-000 277-5016 Mother Board
ITL-B7C2-3PAA B7C23PAA Alarm Card, AC1 (3000B-003/4)
LMP-NEON-02K   Control Power On Neon
MOD-0MKR-03K 77-4196 Relay,Alarm, K4
MOD-0STB-03K   Strobe Alarm Module
RES-0020-40W 77-2759 Resistor, 20ohm, 40W, R2, R3, R4
RES-0050-55W RJ000001 Resistor, 50ohm, 55W, R1
RES-ASSY-03K-R6 RW50RB0502GF Resistor Assembly, 50K, 50W, R6, R7
RES-ASSY-03K-R5 RW000002 Resistor Assembly, 1.5K, 50W, R5
RLY-03KB-0K3 77-4192 Relay, Trigger Steering, K3
RLY-2425-A00 77-4198 Relay, Solid State, K5
RLY-SL3K-003 KA121AV0522C Relay, Side Light, K4 (3000B-003/4)
RLY-SPDT-ESC2 77-2013 Interlock & Mode Relay, K1, K2
SW0-ASSY-INT 77-2644 Interlock Switch
SW0-DPDT-ROC   Mode Rocker Switch (3000B-003/4)
XFR-TRG0-03K 77-4040W Trigger Transformer, White, T1
XFR-TRG0-03K 77-4040R Trigger Transformer, Red, T2
XFR-PWR0-03K 77-5002 Power Transformer, T1
PEC-NITE-120 77-3259 Photocell, 120V, Night
CBL-3400-000 77-4017 Flash Head Cable
SUP-LSSD-000 LSPD-3000B Lighting Surge Supression Device



ITL, LLC offers in-house repair services for the FG-3000B power supply and all circuit boards.
